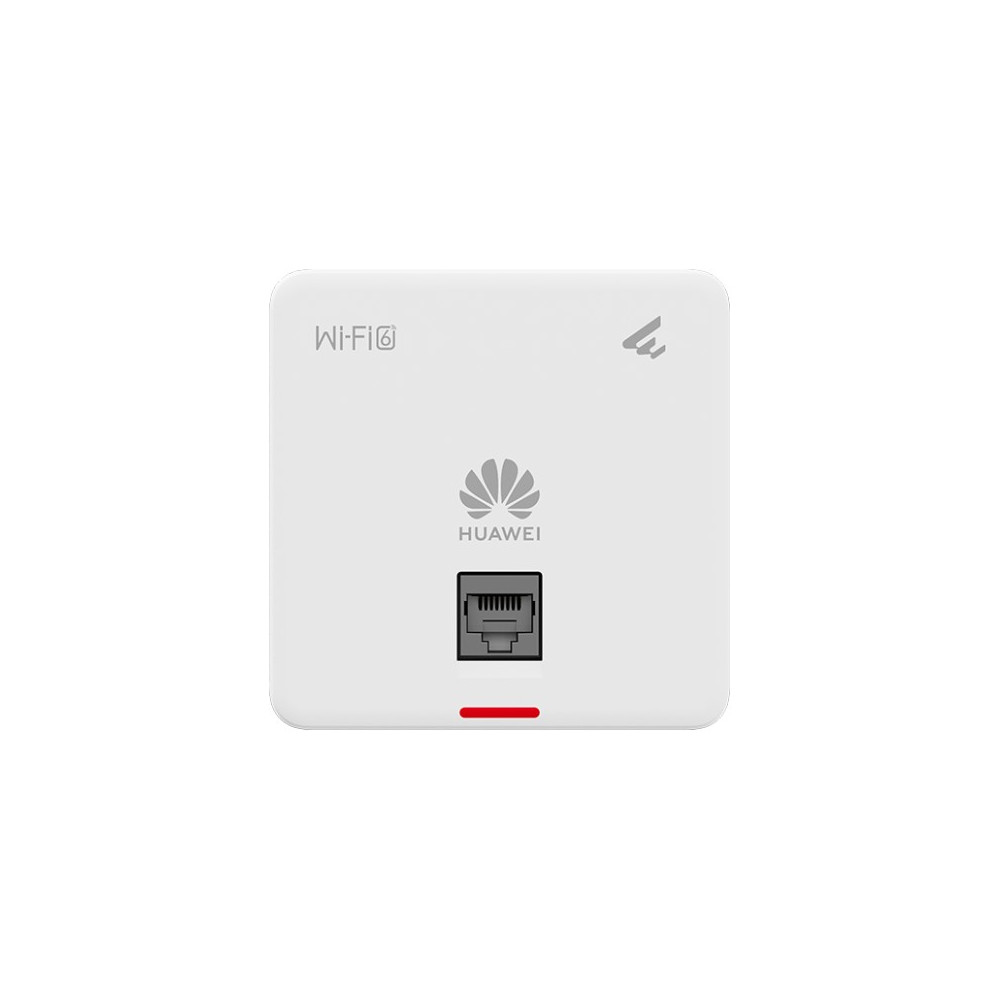

Wall plate 86x86 AP | 802.11ax | 1.775 Gbps device rate | Dual-radio | 48 access users recommended | Max. 128 access users | 20 dBm transmit power | Smart antenna | 15 m optimal coverage range
| Wi-Fi standard | 2.4G: 802.11b/g/n/ax 5G: 802.11a/n/ac/ac Wave 2/ax |
| Installation Type | Junction Box (86 mm) |
| Optimal Signal Distance (m) | 15 |
| Max Number of Access Users | 128 |
| Recommended Number of Access Users | 48 |
| Maximum number of physical ports on the entire device | GE (RJ45) x 2, 10M/100M/1000M auto-sensing |
| Device Rate | 1.775 Gbps |
| Radio number | 2 |
| Maximum channel bandwidth [MHz] | Radio 0 (2.4 GHz): 40 MHz Radio 1 (5 GHz): 80 MHz |
| Maximum transmit power | 2.4G: 17 dBm/chain 20 dBm (combined power) 5G: 17 dBm/chain 20 dBm (combined power) |
| MIMO spatial streams | Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 2x2 |
| Maximum power consumption [W] | 9.1 |
| Input voltage range [V] | PoE: 802.3af |
| Dimensions without packaging (H x W x D) [mm(in.)] | 86 mm x 86 mm x 42.5 mm (3.39 in. x 3.39 in. x 1.67 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 98 mm x 117 mm x 73 mm (3.86 in. x 4.61 in. x 2.87 in.) |
| Weight without packaging [kg(lb)] | 0.14 kg (0.31 lb) |
| Weight with packaging [kg(lb)] | 0.24 kg (0.53 lb) |
| Long-term operating temperature [°C(°F)] | 0°C to 40°C (32°F to 104°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum ambient temperature decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Radio interface | Built-in smart antennas |
| Antenna gain | 2.4 GHz: 3 dBi/chain (peak value) 3 dBi (combined gain) 5 GHz: 2 dBi/chain (peak value) 1 dBi (combined gain) |
| Operating frequency band | 2.4GHz,5GHz |
| Power supply mode | PoE |
| Service port surge protection | PoE port: Common mode (8 wires to ground): 4 kV (1.2/50 us, 42 ohms), criterion C |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating altitude [m(ft.)] | –60 m to +5000 m (–196.85 ft to +16404.20 ft) |
| Atmospheric pressure [kPa] | 53kPa - 106kPa ETSI 300 019-2-3 |
| Ground | Floating ground |
| Frequency stability [ppm] | +/-20 |
