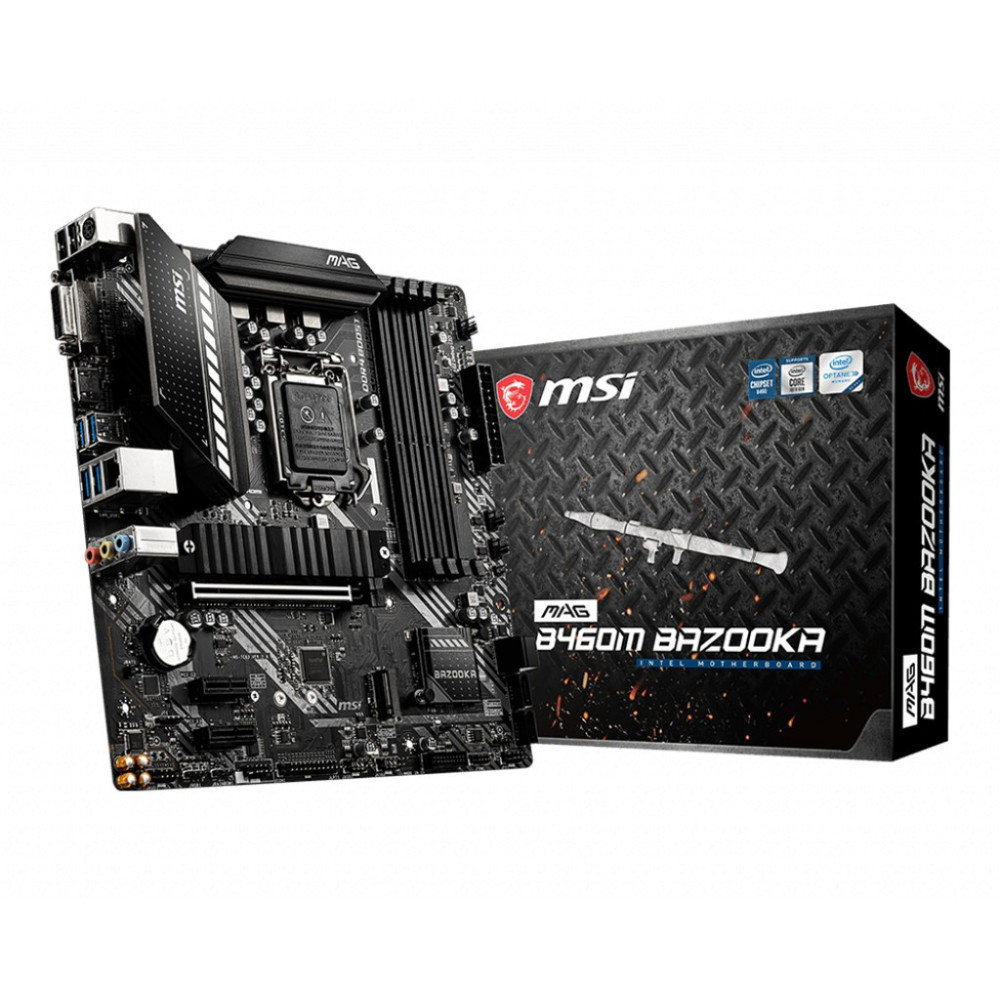

MSI MAG B460M Bazooka Motherboard

MSI MAG B460M Bazooka Motherboard

0 Review(s)
MSI
  • Supports 10th Gen Intel Core / Pentium Celeron processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 2933 MHz(Max)
  • Enhanced Power Design: 5+1+1 Duet Rail Power System, Core Boost, DDR4 Boost
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
Out of Stock
QAR 699.00

THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE

With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end Intel CPU to run in full speed with MSI motherboards.

M.2 SHIELD FROZR

World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.

FULLY CONTROLLABLE IN BIOS AND SOFTWARE

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

OPTIMIZED FOR WATER COOLING

Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 2 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.

EXTREME STABILITY & COMPATIBILITY TESTING

MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules, configurations and even improve overclocking.

HIGH QUALITY AUDIO CAPACITORS

A high fidelity sound experience with exceptional acoustics and realism for studio level headphones is ensured.

Out of Stock

Data sheet

Warranty & Support
1 Year Limited Warranty
Brand
MSI
Model
MAG B460M Bazooka
CPU Support
Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA1200 socket
Chipset
Intel B460 Chipset
Memory
4x DDR4 memory slots, support up to 128GB
Onboard Graphics
1x HDMI port, supporting a maximum resolution of 4096x2160 @ 30Hz, 2560x1600 @ 60Hz; 1x DVI-D port, supports a maximum resolution of 1920x1200 @ 60Hz
Audio
Realtek ALC892/ALC897 Codec
LAN
1x Realtek RTL8111H Gigabit LAN Controller
Expansion Slots
1x PCIe 3.0 x16 slot (from CPU), 2x PCIe x1 slots (from PCH)
USB Interface
6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal USB connector), 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
I/O Connectors
1x 24-pin ATX, 1x 8-pin ATX 12V, 4x SATA 6Gb/s connectors, 1x USB 3.2 Gen 1 5Gbps connector, 2x USB 2.0 connectors, 1x 4-pin CPU fan connector, 1x 4-pin water pump connector, 2x 4-pin system fan connectors, 1x front panel audio connector
Back Panel Connectors
PS/2 Combo Port, Gigabit LAN, USB 2.0 Ports, DVI-D, HDMI Port, USB 3.2 Gen 1 5Gbps (Type-A), USB 3.2 Gen 1 5Gbps (Type-A), HD Audio Connectors
Form Factor
mATX Form Factor 9.6in. x 9.6in. (24.4cm x 24.4cm)
Storage Interface
4x SATA 6Gb/s ports, 2x M.2 slots (Key M)

Reviews

No customer reviews for the moment.

Write your review

MSI MAG B460M Bazooka Motherboard

  • Supports 10th Gen Intel Core / Pentium Celeron processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 2933 MHz(Max)
  • Enhanced Power Design: 5+1+1 Duet Rail Power System, Core Boost, DDR4 Boost
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
