| Installation type |
Work bench,Against the wall |
| Dimensions without packaging (H x W x D) [mm(in.)] |
- Basic dimensions: 35 mm x 195 mm x 130 mm (1.38 in. x 7.68 in. x 5.12 in.) - Maximum dimensions: 35 mm x 195 mm x 136 mm (1.38 in. x 7.68 in. x 5.35 in.) |
| Chassis height [U] |
0.8 |
| Weight with packaging [kg(lb)] |
1.29 kg (2.84 lb) |
| Weight without packaging [kg(lb)] |
0.93 kg (2.05 lb) |
| Dimensions with packaging (H x W x D) [mm(in.)] |
90 mm x 230 mm x 185 mm (3.54 in. x 9.06 in. x 7.28 in.) |
| Maximum power consumption [W] |
49 (PoE:41W) |
| Typical power consumption [W] |
5.8 |
| Power supply mode |
AC power adapter |
| Number of power modules |
1 |
| Rated input voltage [V] |
100 V AC–240 V AC; 50/60 Hz |
| Input voltage range [V] |
90 V AC–264 V AC; 45 Hz–65 Hz |
| Maximum output power [W] |
50 W |
| Maximum input current [A] |
0.9 A |
| Safety regulation certification |
IEC/EN/UL 62368-1 GB 4943.1 CSA C22.2 No. 62368-1 AS/NZS 62368-1 |
| EMC certification |
EN 55032 EN 55035 EN 300386 EN 61000-3-2 EN 61000-3-3 EN 301 489-1 EN 301 489-17 ICES-003 AS/NZS CIPSR32 VCCI-CIPSR32 GB/T 9254.1 FCC CFR47 part 15 |
| PoE |
Supported |
| Maximum PoE output power [W] |
41 |
| PoE power ports |
5 |
| PoE+ power ports |
5 |
| Noise at normal temperature (acoustic power) [dB(A)] |
Fanless, silent |
| Long-term operating temperature [°C(°F)] |
0°C to 40°C (32°F to 104°F) Note: When the altitude is 1800 m-5000 m (5906 ft.-16404.2 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Storage temperature [°C(°F)] |
-40°C to +70°C (-40°F to +158°F) |
| Long-term operating relative humidity [RH] |
5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] |
< 5000 m (16404.2 ft.) |

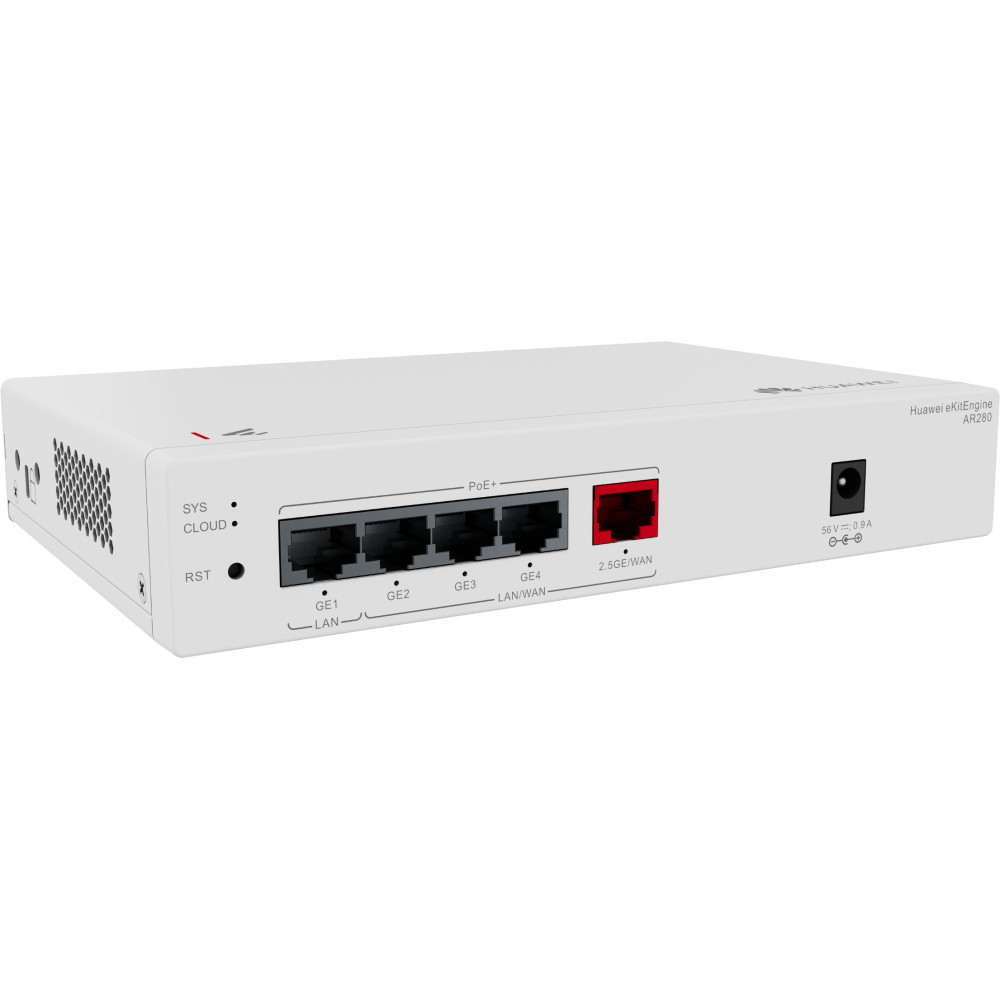

| LAN ports |
4 x GE electrical interfaces |
| WAN ports |
1 x 2.5GE electrical port |
| Airflow |
Natural heat dissipation |
| GE RJ45 |
4 (PoE+) (1G/100M/10M) |
| Overtemperature alarm |
Supported |
| 2.5GE RJ45 |
1 (PoE+) (2.5G/1G/100M/10M) |
| Certification |
EMC certification Safety certification Manufacturing certification |
| Environmental standards compliance |
EN 300 019-2 IEC 60068-2 |
