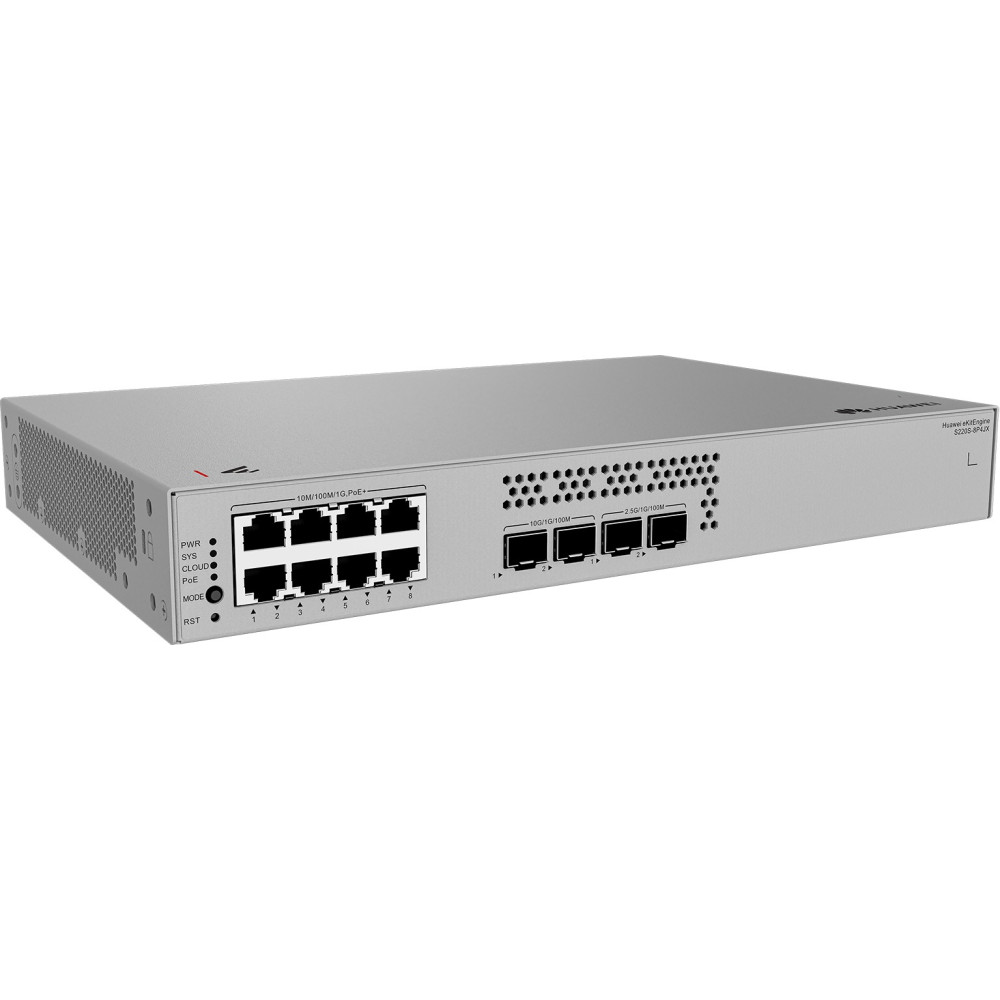

8 x 10/100/1000BASE-T PoE+ ports, 2 x 10GE SFP+ ports, 2 x 2.5GE SFP ports | Packet forwarding rate: 49 Mpps | Switching capacity: 66 Gbit/s
| Switching capacity | 66 Gbit/s |
| Packet forwarding rate | 49 Mpps |
| GE RJ45 | 8 (PoE+) (1G/100M/10M) |
| 2.5G SFP | 2 (2.5G/1G/100M) |
| 10G SFP+ | 2 (10G/1G/100M) |
| PoE | Supported |
| Maximum PoE power consumption [W] | 128 |
| Certification | EMC certification Safety certification Manufacturing certification |
| Chassis material | Metal |
| Static power consumption [W] | 13.93 |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 320 mm x 210 mm (1.72 in. x 12.60 in. x 8.27 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 320 mm x 217 mm (1.72 in. x 12.60 in. x 8.54 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 91.0 mm x 465.0 mm x 355.0 mm (3.58 in. x 18.31 in. x 13.98 in.) |
| Installation type | Rack mounting,Desk mounting,Wall mounting |
| Weight without packaging [kg(lb)] | 2.53 kg (5.58 lb) |
| Weight with packaging [kg(lb)] | 3.43 kg (7.56 lb) |
| Typical power consumption [W] | 22.73 |
| Maximum power consumption [W] | - Without PoE: 23.23 W - Full PoE load: 161.56 W (PoE: 128 W) |
| Long-term operating temperature [°C(°F)] | –5°C to +40°C (23°F to 104°F) at an altitude of 0-1800 m (0-5905.44 ft.) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Power supply mode | AC built-in |
| Input voltage range [V] | AC input: 90 V AC to 300 V AC; 47 Hz to 63 Hz |
| Power supply surge protection [kV] | Differential mode: ±6 kV; common mode: ±6 kV |
| Heat dissipation mode | Natural heat dissipation |
