| Network |
Standard IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE |
| Product |
Segment BE3600 ultimate BE performance: 688+2882 Mbps |
| Coverage |
Large homes |
| Data Rate |
802.11be (2.4GHz) : up to 688 Mbps |
| |
802.11be (5GHz) : up to 2882 Mbps |
| Antenna |
External antenna x 4 |
| Transmit/Receive |
2.4 GHz 2 x 2 |
| |
5 GHz 2 x 2 |
| Processor |
2.0 GHz quad-core processor |
| Memory |
256 MB Flash |
| |
1 GBRAM |
| Wi-Fi Technology |
MLO (Multi-link Operation) |
| |
OFDMA (Orthogonal Frequency Division Multiple Access) |
| |
Beamforming: standard-based and universal |
| |
4096-QAM high data rate |
| |
20/40/80/160 MHz bandwidth |
| Operating Frequency |
2.4 GHz, 5 GHz |
| Encryption |
WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2 |
| |
Enterprise , WPS support |
| Firewall & Access Control |
Firewall: SPI intrusion detection, DoSprotection |
| |
Access control:Parental control, Network service filter, URL filter, Port filter |
| Management |
UPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, PPPoE |
| |
Port Trigger, Port Forwarding, DMZ, System Event Log |
| VPN Support |
PPTP Pass-Through, L2TP Pass-Through,IPSec Pass-Through |
| |
RTSP Pass-Through,H.323 Pass-Through,SIP Pass-Through,PPPoE Relay |
| |
IPSec server |
| |
PPTP server |
| |
Open VPN server |
| |
PPTP client |
| |
L2TP client |
| |
Open VPN client |
| WAN Connection Type |
Internet connection type : PPPoE, PPTP, L2TP, Automatic IP, Static IP |
| Utilities |
Router setup wizard; Firmware restoration; Device discovary; printer setup utility |

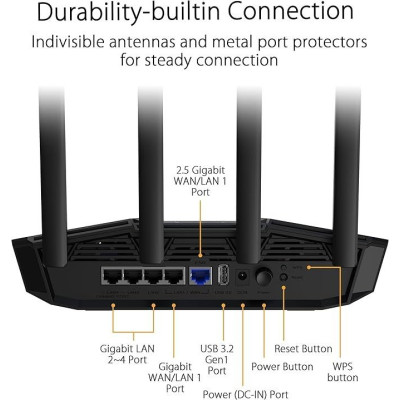

| Ports |
RJ45 for 2.5 Gigabits BaseT for WAN/LAN x 1, RJ45 for Gigabits BaseT for |
| |
WAN/LAN x 1, RJ45 for Gigabits BaseT for LAN x 3 |
| |
USB 3.2 Gen 1 x 1 |
| Features |
Router app |
| |
Link Aggregation-802.3ad |
| |
MU-MIMO |
| |
Traffic Analyzer |
| |
Adaptive QoS |
| |
Ai Protection Pro |
| |
Parental Control |
| |
Guest Network :Up to 3 SSIDs |
| |
NAT Pass-Through :PPTP Pass-Through, L2TP Pass-Through, IPSecPass-Through, |
| |
RTSP Pass-Through, H.323 Pass-Through, PPPoErelay |
| |
Mac OS Backup |
| |
Enhanced media server (AiPlayerapp compatible)-Image :-Audio : mp3, wma, wav, pcm, mp4, lpcm, ogg-Video : asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov |
| |
AiCloud personal cloud service |
| |
3G/4G data sharing |
| |
Printer Server-Multifunctional printer support (Windows only)-LPR protocol support |
| |
Download Master-Support bt, nzb, http, ed2k-Support encryption, DHT, PEX and magnet link-Upload and download bandwidth control-Download scheduling |
| |
AiDisk file server-Samba and FTP server with account management |
| |
Dual WAN |
| |
WAN Aggregation |
| |
IPTV support |
| |
Roaming Assist |
| |
OFDMA |
| |
Beamforming |
