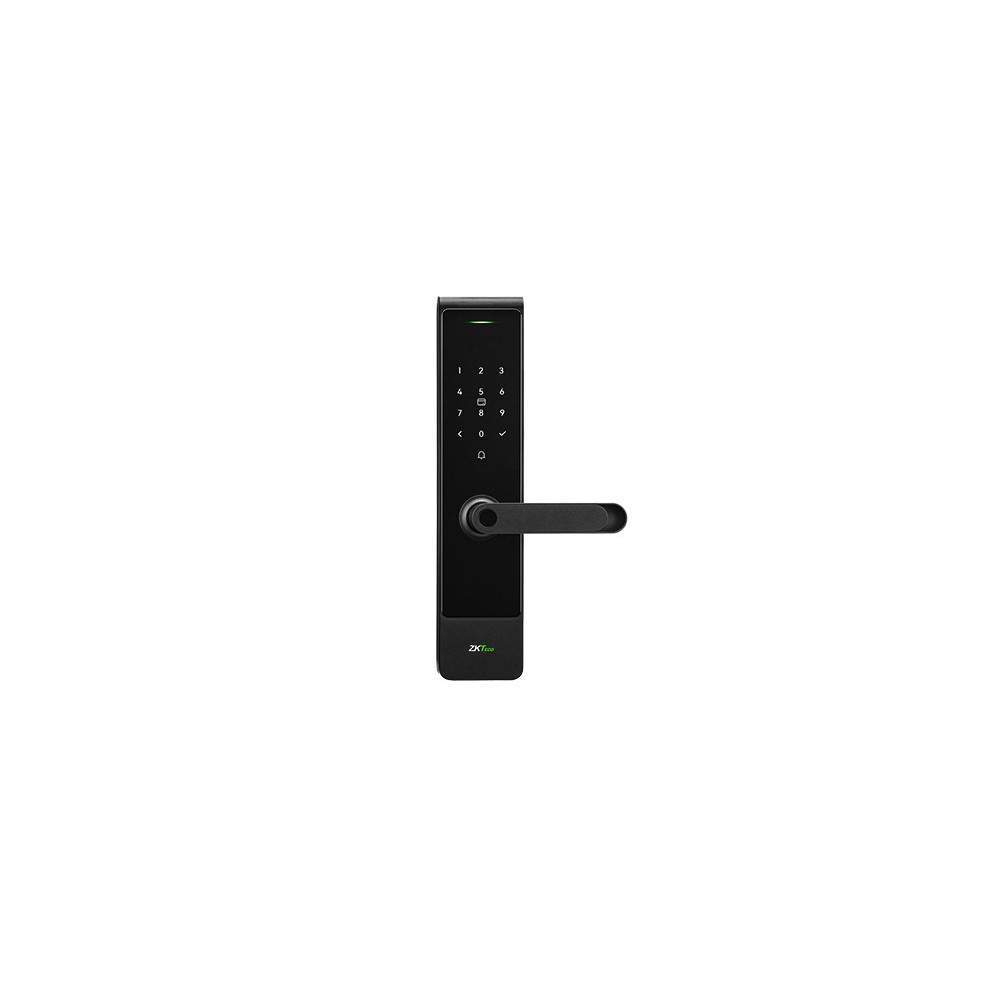

The SL01-T430H is a mortise-style door lock with a lever handle. It has a fingerprint sensor and supports remote locking and unlocking via a mobile device. When SL01-T430H is connected to Wi-Fi, users can remotely lock and unlock the door using the ZSmart app.
Material
Housing Material Aluminum Alloy
Front Panel Tempered Glass (2.5D edge processing)
Color Options Matt Black, Space Gray
Mortise Type
Type European Standard
Backset 55 mm
Axe Distance 72 mm
Square Spindle 7.8 mm
Faceplate (H×W) 24×235 mm; squared standard
Built-in Detectors Auxiliary Latch (Anti-card system), Deadbolt
Technical
Unlocking Methods Fingerprint, Card, Passcode (6 or 8 digits),
ZSmart App, Voice Assistant, Mechanical Key
Capacity
User: 100, Fingerprint: 100,
Passcode: 100, Card: 50,
Mobile App Records: last 6 months
Fingerprint Sensor Capacitive (120*88 px)
Card Reader IC Card @13.56 MHz
NFC Supported
Audio Prompt Language English, Spanish
Wireless Communication Wi-Fi (IEEE 802.11b/g/n) @ 2.4 GHz
BLE 5.0 (only for network configuration)
Emergency Power USB Type-C Interface, DC 5V
Power Supply 8 × AA Alkaline Batteries
Battery Life approximately 10 months
* Battery life is estimated based on an average of 10 accesses
per day while maintaining the Wi-Fi connection
Voice Assistant Platform Amazon Alexa, Google Assistant
Supported App ZSmart
Door Compatibility
Door Type Wooden Swing Door
Door Thickness 35 to 60 mm (standard)
Opening Direction All Direction (reversible lever design)
