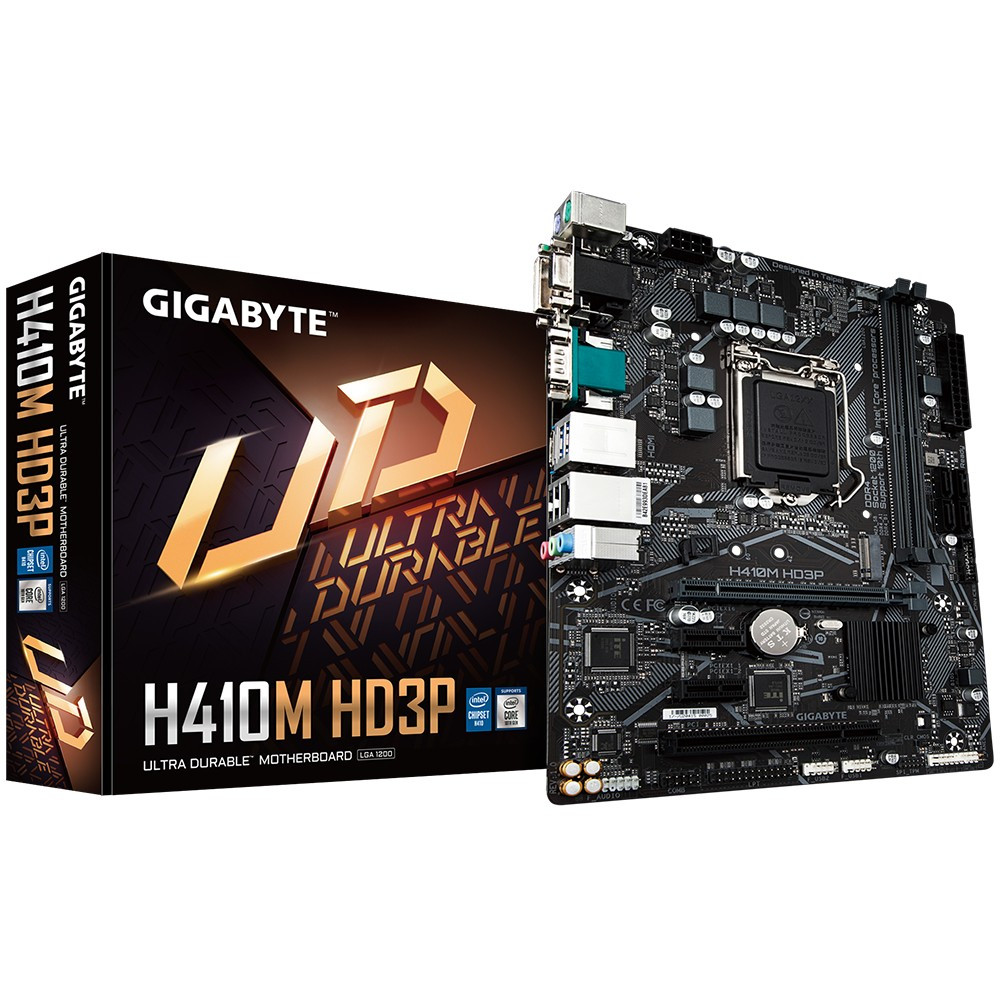

Gigabyte H410M HD3P (rev. 1.0) Motherboard


Gigabyte H410M HD3P (rev. 1.0) Motherboard

0 Review(s)
Gigabyte
  • Supports 10th Gen Intel Core Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • 8-Channel HD Audio with High Quality Audio Capacitors
  • Ultra-Fast M.2 with PCIe Gen3 X4 & SATA interface
  • Intel GbE LAN with cFosSpeed Internet Accelerator Software
  • 4 Display Interfaces Support
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
Out of Stock
QAR 549.00
Quantity
Order via WhatsApp Call to Order
Add to Compare
Add to Wishlist

Intel GbE LAN with cFosSpeed Internet Accelerator Networking

Intel GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

NVMe PCIe Gen3 x4 2280 M.2 Connector (Up to 32 Gb/s)

GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.

High Definition Digital Outputs

Enjoy true HD display capability using the most commonly integrated digital output technologies on today’s HD displays and TVs.

Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

High-End Audio Capacitors

GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Out of Stock

Data sheet

Warranty & Support
1 Year Limited Warranty
Brand
Gigabyte
Model
H410M HD3P (rev. 1.0)
CPU Support
Support for 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1200 package
Chipset
Intel H410 Express Chipset
Memory
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Onboard Graphics
1 x D-Sub port, 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz, 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz, 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
Audio
Realtek ALC887 codec, High Definition Audio, 2/4/5.1/7.1-channel
LAN
Intel GbE LAN chip (1000/100 Mbit)
Expansion Slots
1 x PCI Express x16 slot, running at x16, 2 x PCI Express x1 slots, 1 x PCI slot
USB Interface
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header), 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB header)
I/O Connectors
1 x 24-pin ATX, 1 x 8-pin ATX 12V, 4 x SATA 6Gb/s connectors, 1 x CPU fan header, 1 x system fan header, 1 x front panel header, 1 x front panel audio header, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, 1 x Trusted Platform Module header
Back Panel Connectors
1 x PS/2 keyboard port, 1 x PS/2 mouse port, 1 x D-Sub port, 1 x DVI-D port, 1 x DisplayPort, 1 x HDMI port, 1 x serial port, 2 x USB 3.2 Gen 1 ports, 2 x USB 2.0/1.1 ports, 1 x RJ-45 port, 3 x audio jacks
Unique Features
Support for APP Center, Support for Q-Flash, Support for Xpress Install
Form Factor
Micro ATX Form Factor; 22.6cm x 18.5cm
Storage Interface
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support), 4 x SATA 6Gb/s connectors
