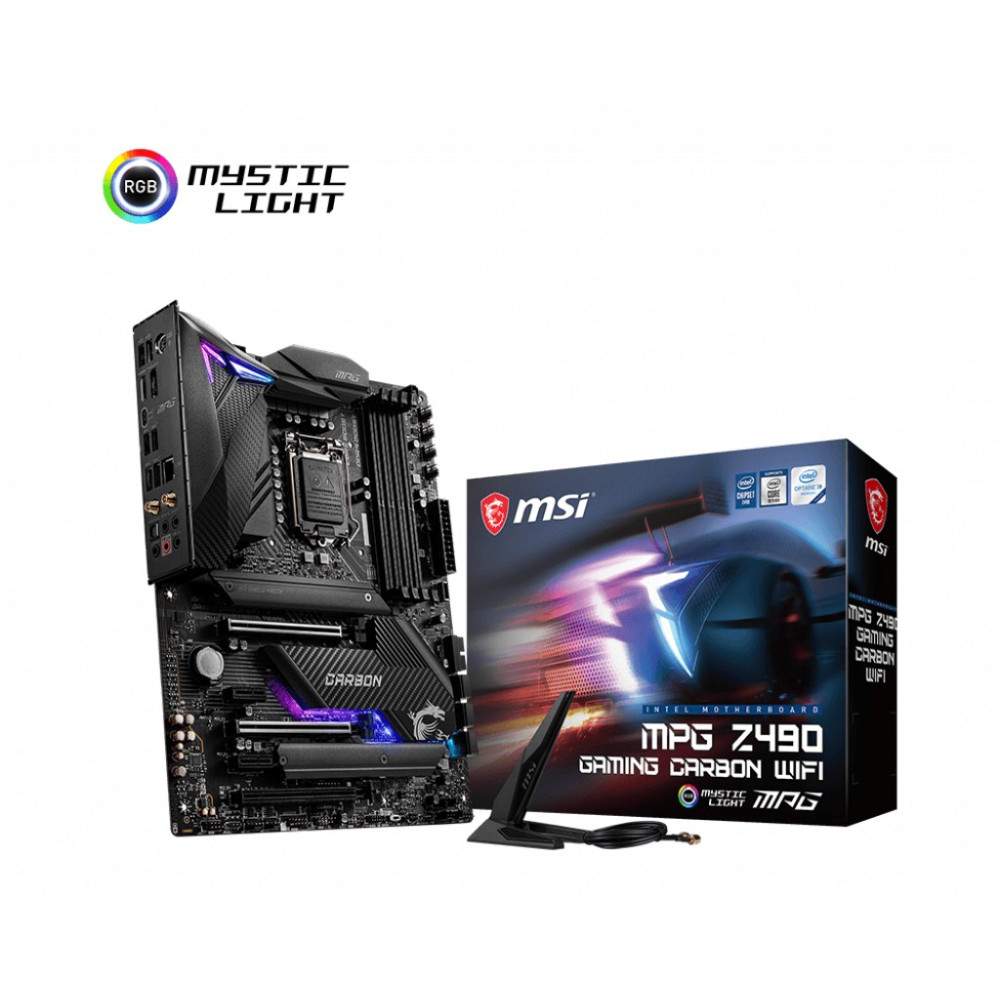

MSI MPG Z490 Gaming Carbon Wi-Fi Motherboard

MSI MPG Z490 Gaming Carbon Wi-Fi Motherboard

0 Review(s)
MSI
  • Supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 5000(OC) MHz
  • Ready 4 the Future: Support Lightning Gen 4 Solution for the future
  • Enhanced Power Design: 12+1+1 Duet Rail Power System, 8+4 pin CPU power connectors, Core Boost, DDR4 Boost
Out of Stock
QAR 1,399.00

M.2 SHIELD FROZR

World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.

FULLY CONTROLLABLE IN BIOS AND SOFTWARE

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you to check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT

Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.

EXTREME STABILITY & COMPATIBILITY TESTING

MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules, configurations and even improve overclocking.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.

SURFACING WITH THE REAL MU-MIMO TECHNOLOGY

The WIFI 6 adopts the latest OFDMA and two-way MU-MIMO technologies and could provide up to 4X network capacity and efficiency in the high signal density environment. Comparing to the WIFI 5, which can only send the data packet to one device at a time on each channel, the WIFI 6 could combine the packet, separate to several devices and allow signals from the different devices bundled together. This new technology provides all the devices in the same network environment with same and harmonious traffic bandwidth in an efficient way.

Out of Stock

Data sheet

Warranty & Support
1 Year Limited Warranty
Brand
MSI
Model
Z490 Gaming Carbon Wi-Fi
CPU Support
Supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1200 socket
Chipset
Intel Z490 Chipset
Memory
4x DDR4 memory slots, support up to 128GB
Onboard Graphics
1x HDMI port, supports a maximum resolution of 4096x2160 @30Hz, 1x DisplayPort, supports a maximum resolution of 4096x2304 @60Hz
Audio
Realtek ALC1220 Codec, 7.1-Channel High Definition Audio, Supports S/PDIF output
LAN
1x Realtek RTL8125B 2.5Gbps LAN controller
Expansion Slots
3x PCIe 3.0 x16 slots support x16/ x0/ x4 or x8/ x8/ x4 mode, 2x PCIe 3.0 x1 slots
USB Interface
5x USB 3.2 Gen 2 10Gbps ports, 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector, 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
I/O Connectors
1x 24-pin ATX, 1x 8-pin ATX 12V, 1x 4-pin ATX 12V, 6x SATA 6Gb/s connectors, 2x M.2 slots (M-Key), 1x USB 3.2 Gen 2 10Gbps Type-C port, 1x USB 3.2 Gen 1 5Gbps connector, 2x USB 2.0 connectors, 1x 4-pin CPU fan connector
Back Panel Connectors
PS/2 Combo Port, DisplayPort, USB 3.2 Gen 2 10Gbps (Type-A), LAN Port, HD Audio Connectors, USB 2.0, HDMI Port, USB 3.2 Gen 2x2 20Gbps (Type-C), USB 3.2 Gen 2 10Gbps (Type-A), Wi-Fi / Bluetooth, Optical S/PDIF OUT
Form Factor
ATX Form Factor 12in. x 9.6in. (30.5cm x 24.4cm)
Storage Interface
6x SATA 6Gb/s ports, 2x M.2 slots (Key M)

Reviews

No customer reviews for the moment.

Write your review

MSI MPG Z490 Gaming Carbon Wi-Fi Motherboard

  • Supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 5000(OC) MHz
  • Ready 4 the Future: Support Lightning Gen 4 Solution for the future
  • Enhanced Power Design: 12+1+1 Duet Rail Power System, 8+4 pin CPU power connectors, Core Boost, DDR4 Boost
